Mopa Fiber Laser Marking Engraving Machine Mini Jewelry Laser Marker
large size aluminum positioning work platform, positioning hole design, tooling positioning and installation more flexible
The whole air cooling system has no consumables, high photoelectric conversion rate, low power consumption, more energy saving and environmental protection
LED Light for Lightning
Ash and Dust Baffle
Aluminum Machining Wheel
High Quality F-theta Lens
8 mm Aluminum Plate Worktable
Raycus/ JPT/ IPG/ MAX Laser Source
Brand Galvohead with dual Focus Finder
| Product Name | Portable Mini Fiber Laser Marking Machine |
| Laser Power | 20W/ 30W/ 50W |
| Laser Wavelength | 1064nm |
| Laser Source Brand | Raycus/ MAX (IPG/ JPT Optional) |
| Laser Marking Area | 50*50mm/ 110*110mm/ 150*150mm |
| Laser Marking Depth | <1.2mm |
| Laser Marking Speed | 2000-15000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | +/- 0.003mm |
| Beam Quality | M2<1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%-100% continuously adjustment |
| Cooling mode | Air cooling |
| System Operation Environment | WinXP/ 7/ 8, 32/64 bits |
| Temperature of Operation Environment | 15℃-35℃ (59℉-95℉) |
| Power Input | <600W |
| Power Requirement | 90V-240V 50/60HZ |
| Communication Interface | USB |
| Life-span of fiber laser module | 100,000 hrs(11.4yrs) |
| Machine Size | 530*420*560mm |
| Net Weight | 45kg |
| Optional Device | T-slot, Rotary device, Jack, Metallic Card,Laser protective goggles |
1. High Quality Scan
Galvo Head
Famous brand Sino-Galvo, High speed galvanometer scan adopting SCANLAB Technology
Digital Signal, High Precision and Speed
2. theta Lens/ Field Lens
Famous brand lens to provides precision laser
Multiple working area for you. 75*75 mm, 110*110 mm, 150*150 mm, 175*175 mm, 300*300mm

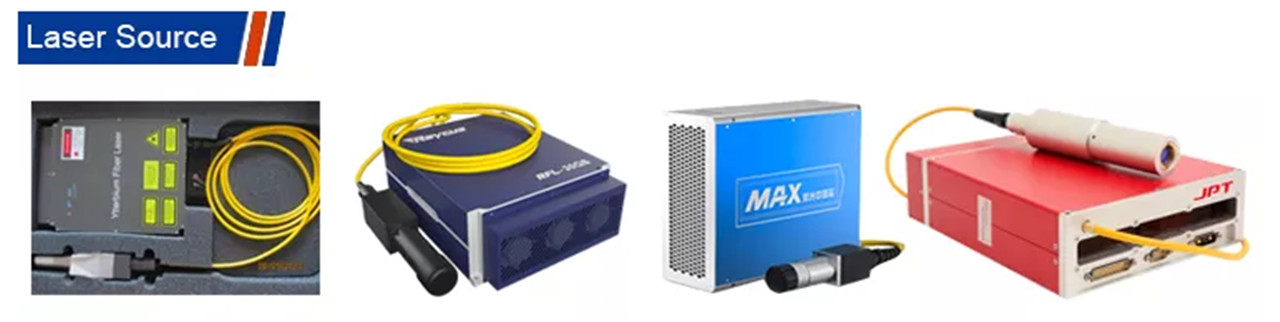

3. Raycus Laser Source
Working Stable
Output good laser beam, Optional brand, Max, JPT, IPG Laser Source

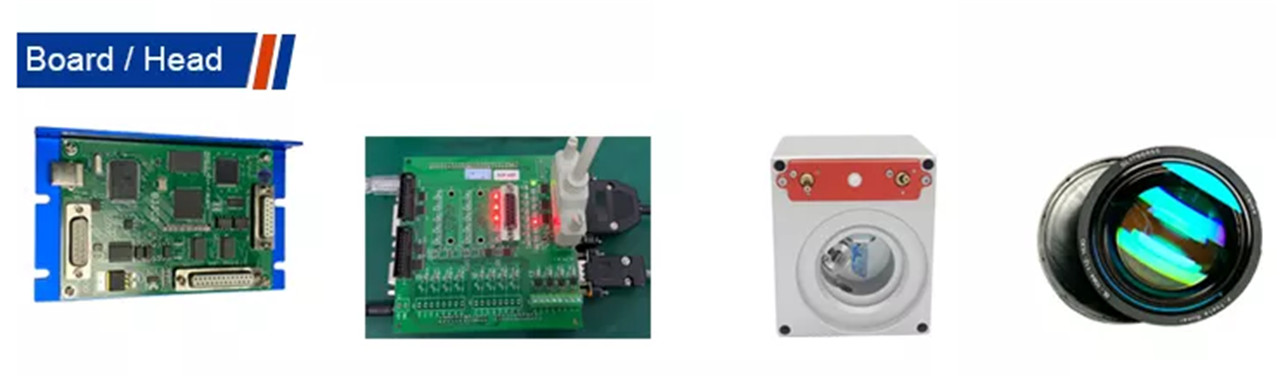

4. EZCAD Control Board
Genuine EZCAD Control system compatible with Win XP
User-Friendly interface, functional diversity, high stability, high precision
5. Switch Button
Humanized control system, easy to learn
Safe and convenient, dust proof design
6. Working Table
Aluminum Material, long lifetime
| Material | Thickness(mm) | Cutting Speed(mm/s) | Time | Drawing | Size | Remark |
|
Bronze |
0.2 mm | 500 mm/s | 20 secs |
Hexagon Shape |
22 mm*25 mm |
Laser: JPT 50W LP Power: 95% Frequency: 100KHZ |
| 200 mm/s | 10 secs | |||||
| 0.5mm | 500 mm/s | 300 secs | ||||
| 200 mm/s | 200 secs | |||||
| 0.8 mm | 500 mm/s | 120 mins | ||||
| 200 mm/s | 60 mins | |||||
| 1.0 mm | 500 mm/s | 230 mins | ||||
| 200 mm/s | 220 mins |
