6-AXIS COLLABORATIVE ROBOT
Chang Guangxi Cobot — C-Series & G-Series
Payload from 3 kg to 12 kg with ±0.03 mm repeatability. Certified to CE, FCC, SGS, ISO 9001 / 14001 / 45001 and IATF 16949:2016. Deployed across automotive, 3C electronics, machining, new energy, food & beverage, semiconductor, medical and logistics.
Supplied by the authorized exclusive distributor for South China — local stock, on-site integration, operator training and lifetime maintenance.
Key Specifications

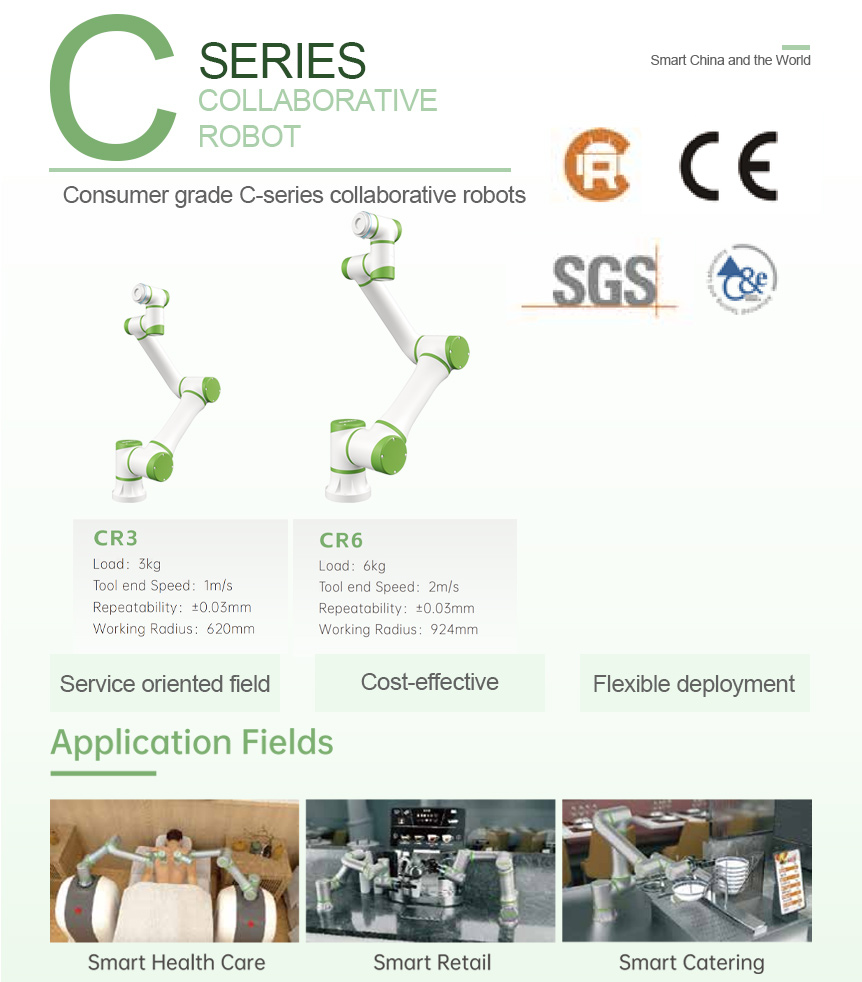

C-Series — CR3 & CR6 (Consumer Grade)
The C series is designed for service-oriented fields, cost-effective deployment and flexible installation. With a self-weight load ratio below 4 and an integrated teach pendant, CR3 and CR6 fit into smart retail, smart catering, smart health care and light industrial cells without safety cages.
CR3
Compact 3 kg cobot for service tasks and consumer scenarios.
| Payload | 3 kg |
| Tool-end speed | 1 m/s |
| Repeatability | ±0.03 mm |
| Working radius | 620 mm |
| Typical use | Smart retail, smart catering, smart health care |
CR6
Cost-effective 6 kg cobot for light assembly and palletizing cells.
| Payload | 6 kg |
| Tool-end speed | 2 m/s |
| Repeatability | ±0.03 mm |
| Working radius | 924 mm |
| Typical use | 3C assembly, screw locking, palletizing |

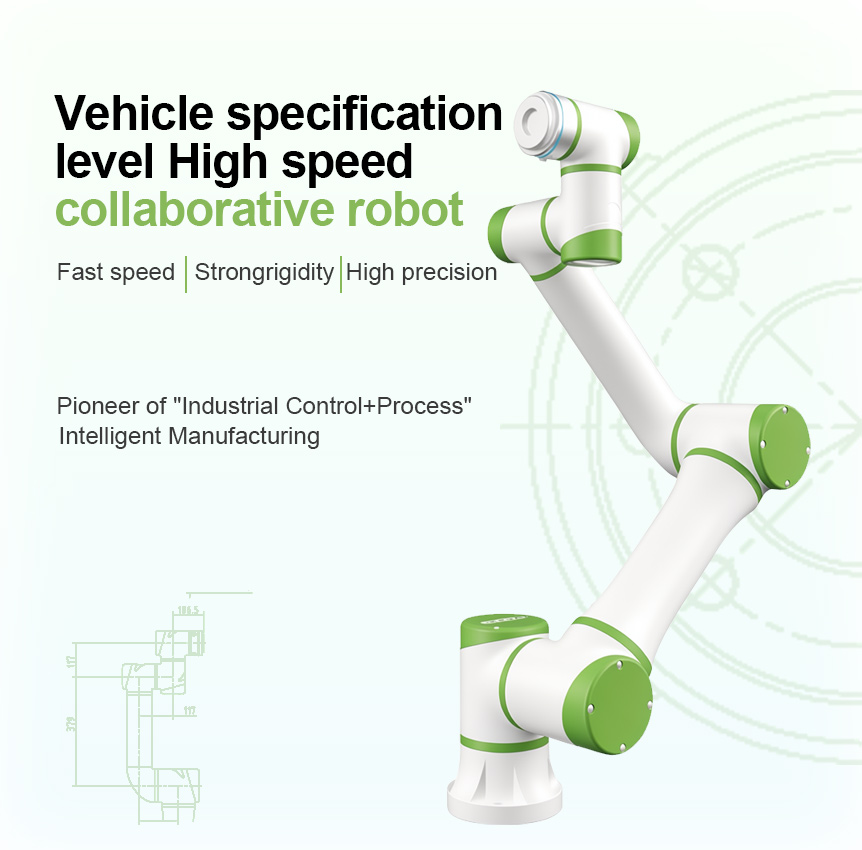

G-Series — G6 & G12 (Vehicle-Grade High Speed)
The G series is the vehicle-specification-level collaborative robot combining high speed, strong rigidity and high precision. It is the “Industrial Control + Process” option for automotive tier-1 cells, heavy-payload spraying, mobile welding, polishing and AI vision inspection.
G6
6 kg vehicle-grade cobot for screw locking, welding and AI inspection.
| Payload | 6 kg |
| Repeatability | ±0.03 mm |
| Quality standard | IATF 16949:2016 |
| Communication | EtherCAT, Modbus, TCP/IP, 4G / 5G |
| Typical use | Screw locking, polishing, AI vision, welding |
G12
12 kg heavy-payload cobot for spray painting and mobile welding.
| Payload | 12 kg |
| Repeatability | ±0.03 mm |
| Quality standard | IATF 16949:2016 |
| Special feature | AI-driven path planning for body painting |
| Typical use | 4S-store spraying, deburring, mobile welding |

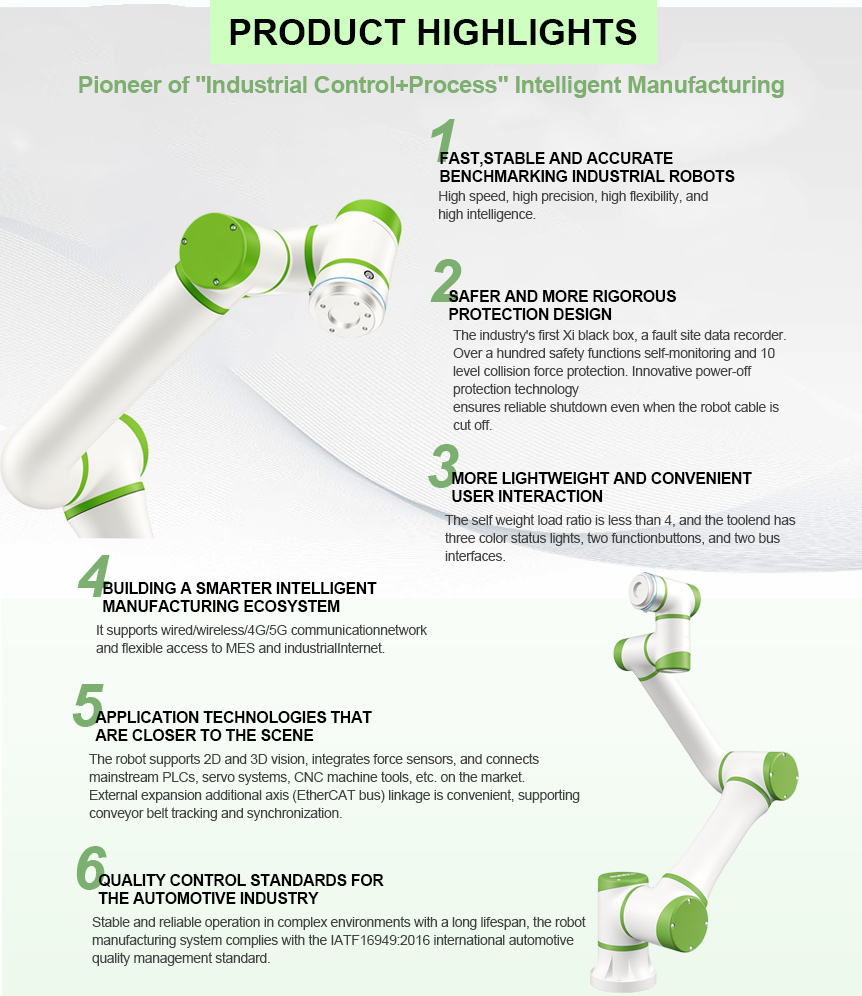

Six Engineering Highlights of the G-Series
These are the design decisions our application engineers reference when recommending a cobot for a new cell.
1. High Speed, Stability & Accuracy
Calibrated benchmarks for high speed, high precision, high flexibility and high intelligence — comparable to industrial-grade six-axis robots.
2. Multiple-Layer Safety Design
XI black-box data recorder, over 100 self-monitoring safety functions, 10-level collision-force protection, and power-off protection that keeps the robot stable when the cable is suddenly cut.
3. Lightweight & Easy to Use
Self-weight-to-payload ratio below 4. The tool-end provides three-color status lights, two function buttons and two bus interfaces, plugging directly into your existing line.
4. Smart Manufacturing Ecosystem
Wired / wireless / 4G / 5G communication and flexible access to MES and the Industrial Internet.
5. Scene-Closer Application Tech
2D and 3D vision, integrated force sensors, mainstream PLCs, servo systems and CNC machines. EtherCAT extension axis enables conveyor-belt tracking and synchronization.
6. Automotive-Grade Quality
Stable long-lifespan operation. Manufacturing system complies with IATF 16949:2016.

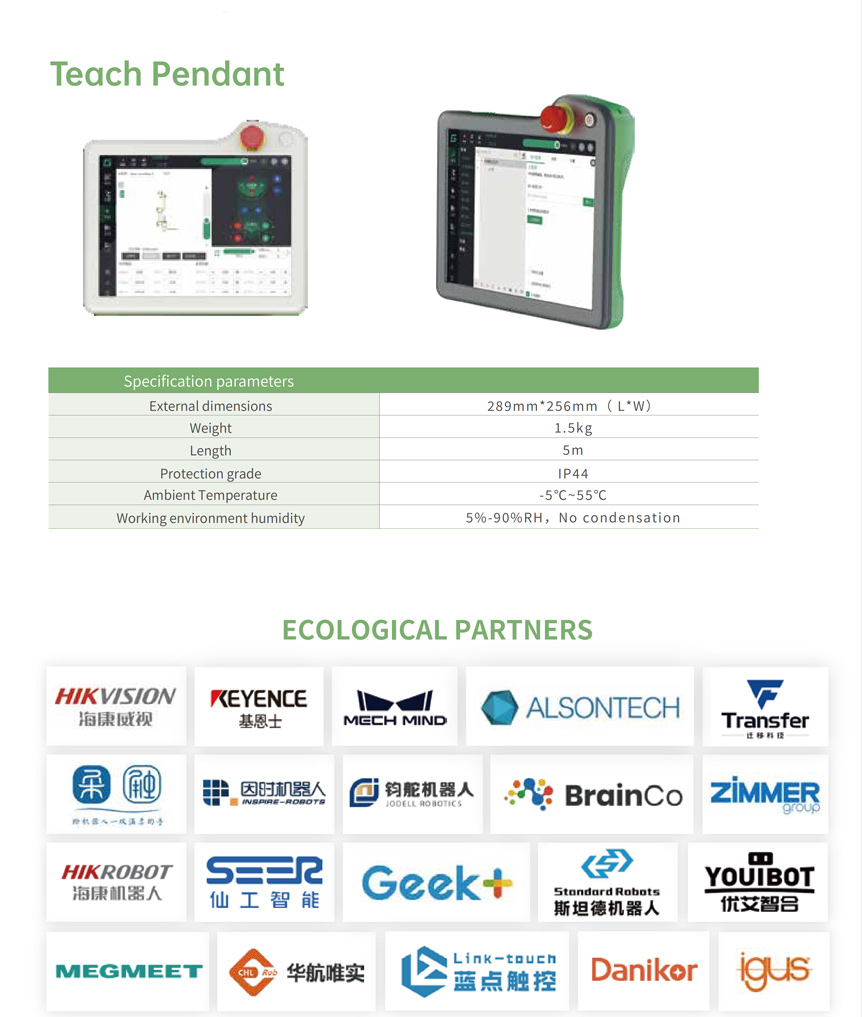

Portable Teach Pendant
A 1.5 kg portable teach pendant with emergency-stop hardware, three-color status lights and a graphical programming environment lets operators drag, drop and record motion paths without writing code.
Teach Pendant — Parameter Sheet
| External dimensions | 289 × 256 mm (L × W) |
| Weight | 1.5 kg |
| Cable length | 5 m |
| Protection grade | IP44 |
| Operating temperature | −5 °C to 55 °C |
| Operating humidity | 5 – 90 % RH, non-condensing |
Connectivity & Ecosystem
Through the Chang Guangxi open interface, the cobot interoperates with vision, force and motion suppliers:
Hikvision · Keyence · Mech-Mind · Alsontech · Transfer · Inspire-Robots · Jodell Robotics · BrainCo · Zimmer · Hikrobot · Geek+ · Standard Robots · Youibot · Megmeet · Link-Touch · Daniker · igus
Application Industries
Across 20+ industrial sectors, validated by real production data shared by tier-1 customers.
Automotive · 3C Electronics · Machining · New Energy · Home Appliances · Food & Beverage · Daily Chemical · Semiconductor · Textile · Bathroom · Agriculture · Retail · Medical Treatment · Scientific Research · Catering · Service · Mining · Power · Building · Logistics

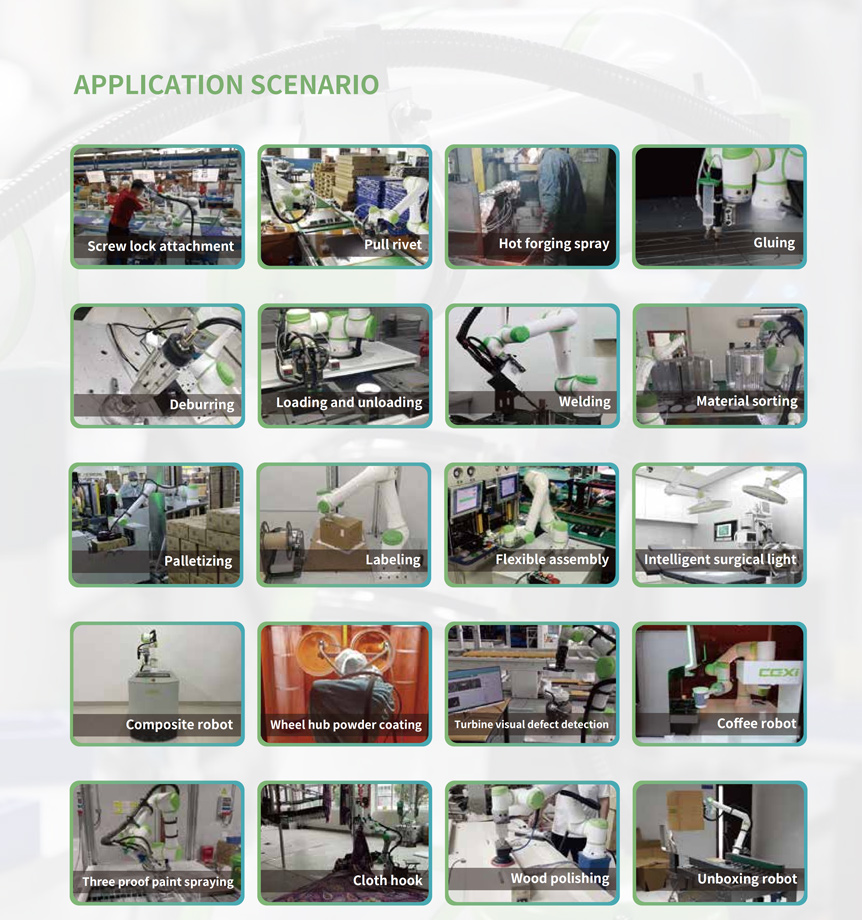

Application Scenarios
Each scenario is delivered with a pre-validated tool set and motion program — adopt a proven package or ask our application team to adapt it to your cell.
Screw Locking · Pull Riveting · Hot Forging Spray · Gluing · Deburring · Loading / Unloading · Welding · Material Sorting · Palletizing · Labeling · Flexible Assembly · Surgical Light · Composite Robot · Wheel-Hub Powder Coating · Turbine Vision Inspection · Coffee Robot · Conformal Coating Spray · Cloth Hooking · Wood Polishing · Unboxing

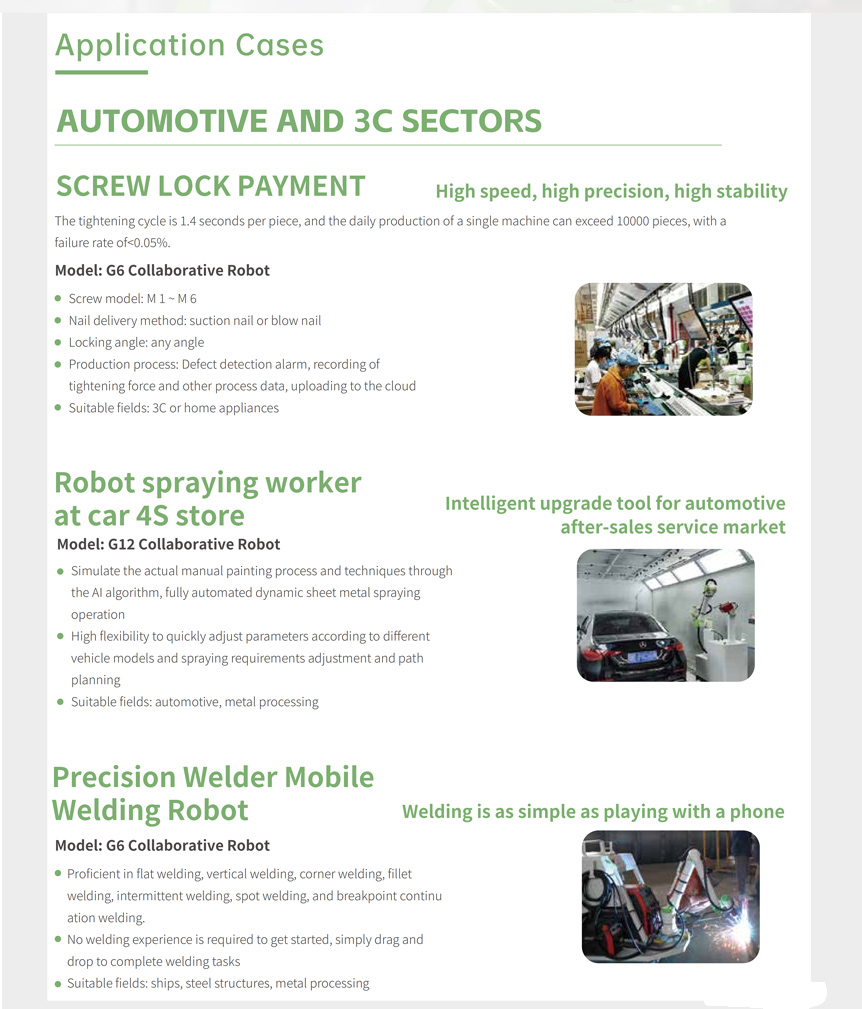

Documented Cases — Automotive & 3C
Screw-Locking Workstation
- Tightening cycle: 1.4 s per piece
- Daily output (single machine): 10,000+ pieces
- Failure rate: less than 0.05 %
- Screw range M1 – M6, suction or blow nail feeding
- Adaptive angle, cloud upload of force data and defect alarms
Intelligent Spray Painting for Vehicle After-Sales
- AI algorithm simulates manual painting trajectories for fully automated sheet-metal spraying
- Quick parameter adjustment across different vehicle models and spray patterns
Mobile Precision Welding Cobot
- Flat, vertical, corner, fillet, intermittent, spot and breakpoint-continuous welding
- No welding experience required — drag-and-drop programming completes a task

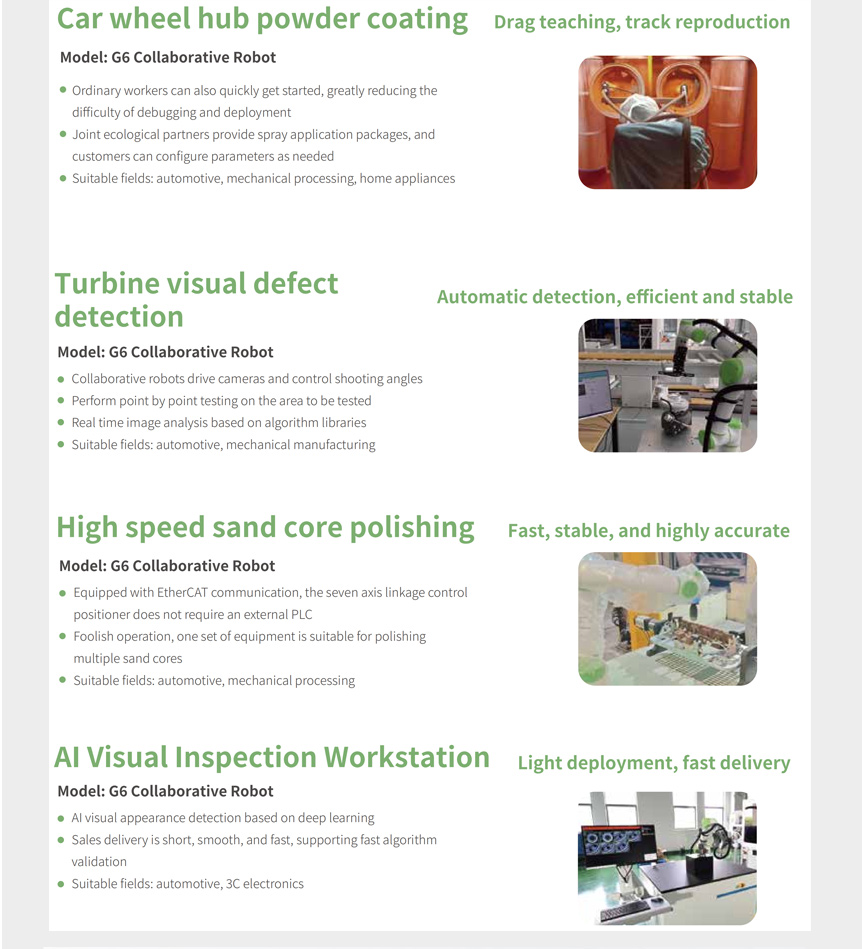

Wheel-Hub Powder Coating
- Drag-teach and trajectory replay deliver consistent coating thickness
- Ecological partners provide ready-made spray packages
Turbine Visual Defect Detection
- The cobot drives the camera and controls the shooting angle
- Point-by-point detection with real-time image analysis
High-Speed Sand-Core Polishing
- EtherCAT communication — seven-axis linkage without an external PLC
- One set of equipment suits multiple sand cores
AI Visual Inspection Workstation
- Deep-learning appearance detection with fast model deployment
- Supports fast algorithm validation and short delivery cycles
Certification System
- CE — Conformité Européenne for the EU market
- FCC — United States Federal Communications Commission
- SGS — third-party conformance tested
- ISO 9001 / ISO 14001 / ISO 45001 — quality, environmental and occupational health management
- IATF 16949:2016 — international automotive quality management standard
- TUV Nord Certificate of Conformity, TUV SUD Eco-Test Authorization
Trusted by Tier-1 Manufacturers & Academic Institutions
The same cobot platform is shipped to OEMs, Tier-1 suppliers, FMCG multinationals and leading research universities.
FAW-Volkswagen · Hongqi · SAIC-GM · Xpeng · Great Wall · Audi · Magna · ZF · Forvia · CRRC · Luxshare · Amway · Panasonic · YTL · Huawei · Xiaomi · Siemens · Supor · Coca-Cola · Yili · China Mobile · Changshu Automotive Trim · L’Oréal · Mengniu · CMOC · Tsinghua University · Peking University · Beijing Institute of Technology
Services — Local, in South China
Training Services
Robotics fundamentals, industry case sharing, and online / offline seminars for your operations and engineering teams.
Integration Services
Risk assessment of the project plan, on-site assistance during implementation, and regular follow-up for continuous improvement.
After-Sales Service
Lifetime maintenance, 24-hour response window, and complimentary firmware upgrades across the product life cycle.
SOUTH CHINA EXCLUSIVE DISTRIBUTOR
Local Stock, Local Engineers, Lifetime Support
We are the authorized exclusive distributor of Chang Guangxi collaborative robots in South China. We hold local inventory of CR3, CR6, G6, G12 and matching teach pendants, grippers and vision kits, and dispatch an application engineer to your site for every project acceptance.
Guangdong Guangxi Hainan Fujian Hunan Greater Bay Area
What you get from us, not just a robot
- Pre-sales consulting — payload, reach, repeatability and cycle-time matching for your cell
- On-site integration — vision, force, conveyor and PLC integration by our team
- Operator training — handover documents plus on-site training for line workers
- Lifetime maintenance — 24-hour response window, firmware upgrades, spare parts
- Direct factory pricing — quotation aligned with manufacturer pricing policy
Service languages: English · Mandarin · Cantonese
Email: info@mavenlaser.com · Tel: +86 186 6417 3525
Frequently Asked Questions
Which model should I choose — CR3, CR6, G6 or G12?
Match the payload first. CR3 (3 kg) fits service scenarios such as smart retail and catering. CR6 (6 kg, 924 mm reach) is the cost-effective option for light assembly. G6 (6 kg, automotive-grade) is recommended when IATF 16949 quality is required. G12 (12 kg) suits spray painting, mobile welding and heavier handling.
What is the repeatability and accuracy of the cobots?
All C-series and G-series models offer a repeatability of ±0.03 mm, which is sufficient for screw locking, soldering, vision inspection, dispensing and most assembly tasks.
Which international certifications do the cobots hold?
CE (Europe), FCC (USA), SGS third-party testing, ISO 9001 / ISO 14001 / ISO 45001, and IATF 16949:2016 for the automotive supply chain. TUV Nord and TUV SUD reports are available on request.
Can the cobot integrate with 2D/3D vision and force sensors?
Yes. The G series supports 2D and 3D vision, integrates force sensors, and connects to mainstream PLCs, servo systems and CNC machines. EtherCAT extension axis enables conveyor-belt tracking and synchronization.
How fast is delivery and what does the warranty look like?
C-series models are held in local stock in South China and ship within 5 business days. G-series models are scheduled per order. A standard 12-month warranty is included; extended warranty and on-site service contracts are available.
Do you provide integration services or just the equipment?
Both. Equipment-only orders are welcome for buyers with their own integration team. For turnkey projects we deliver vision, end-of-arm tooling, conveyor integration and acceptance testing under one scope of work.
