Fully Automatic Exclusive for Jewelry Factories High-Speed Mass Production of Gold & Silver Chains Jewelry Fine Chain Processing

Short Description:

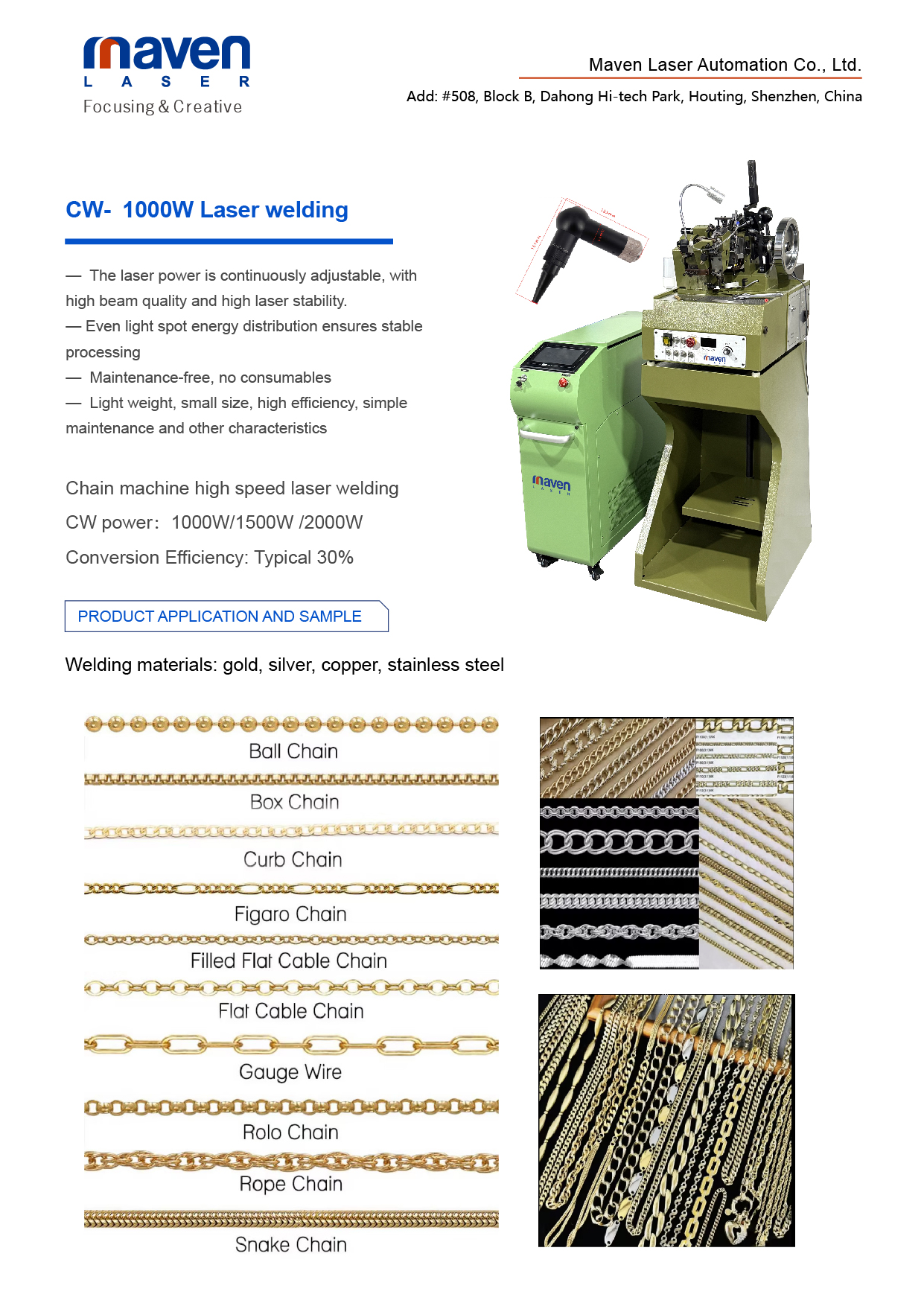

The chain weaving and welding machine is a core automated device in the jewelry and adornment industry. The mainstream solution is an integrated setup combining a chain weaving machine and a laser welding unit, with all-in-one models also available. It is primarily designed for the “weaving + single-loop welding” process of fine chains (with wire diameters ranging from 0.12 to 2.0 mm) made of materials such as gold, silver, karat gold, and stainless steel. Balancing high efficiency and strong welding strength, it is well-suited for overseas marketing and factory-scale mass production.

Product Name: 100W fiber laser Chain Spot welder

Laser Source: 1064nm

Max Power: 2000W

Frequency: 1~50HZ

Max peak energy: 50J

Spot size: -3mm~3mm

Power Supply: 7KW

Positioning: CCD and microscope

Service maintance: free

Input voltage: 220V 50/60HZ 30A

Send email to us WhatsApp Email

Product Detail

Product Tags

III. Core Functions & Advantages

Automatic Integration

Integrates with chain weaving machines to realize single-loop welding. Features automatic counting and stop functions, significantly reducing manual intervention.
Superior Welding Quality

Laser models deliver welding spots with strength equal to or greater than the base material, free of blowholes and air bubbles. Plasma models adopt argon gas protection to minimize oxidation.
Efficiency Boost

10–20 times faster than manual welding, ideal for 24/7 mass production and substantial labor cost reduction.
Strong Adaptability

Compatible with 90° laser heads or straight heads. Supports quick mold changeover for multiple chain styles, fulfilling custom production requirements.
Eco-Friendly Processing

Laser models operate with zero noise, zero stress, and zero pollution, fully complying with European and American environmental standards.
